The series T400 involves a wide range of Valves and Solenoid valves, with several type of acting, with connections from G1/8″ (T488) and G1/4″ (T424), are manufactured with high performance technopolimer.
The use of technopolymer has resulted in a light weight product which can be offered to the market at very interesting prices.
The gang mounted solenoid valves are available with the traditional manifold obtained from bored square bar of series 600 and with the extruded aluminium base allowing a unic inlet port conveying the exhausts. The base is also prearranged to be fixed on DIN 46277/3 guide.

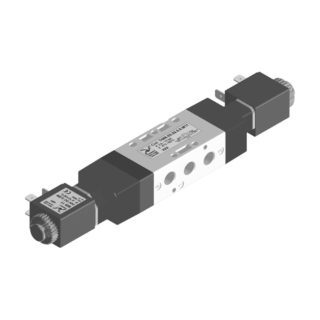

The Valves and Solenoid valves G1/8″ (T488) are: 5 ways function, pneumatically operated, single solenoid (monostable) mechanical or pneumatic spring return, spring or pneumatic return, with 2 coils (bistable) and in 5 ways 3 positions version with closed, open and pressured centres.
The solenoid valves are supplied complete with coil (see series 300) so that the tension has to be added to the solenoid valve code:
M9 = Coil 24 V D.C. (rating power 2 watt)
M11 = Coil 24 V D.C. (rating power 3.8 watt)
M56 = Coil 24 V 50/60 HZ (starting power 9 VA, rating power 6 VA )
M57 = Coil 110 V 50/60 HZ (starting power 9 VA, rating power 6 VA)
M58 = Coil 220 V 50/60 HZ (starting power 9 VA, rating power 6 VA)

The solenoid valves series G1/4″ (T424), are manufactured, depending on version and actuation (manual, pneumatic, or electrical), and self aligning (pneumatic – electric or spring) 3/2, 5/2 and 5/3 ways function, (monostable), (bistable).
the solenoid valves are supplied complete with coil so that the tension has to be added to the solenoid valve code.
B04 = coil 12V D.C.
B05 = coil 24V D.C.
B09 = coil 24V (2W) D.C.
B56 = coil 24V 50/60 Hz A.C.
B57 = coil 110V 50/60 Hz A.C.
B58 = coil 220V 50/60 Hz A.C.


Attachments

3D LIBRARY (STEP) – SOLENOID VALVES 424 SERIES
3D LIBRARY (STEP) – SOLENOID VALVES T488 SERIES
