Optyma-S e Optyma-Sc

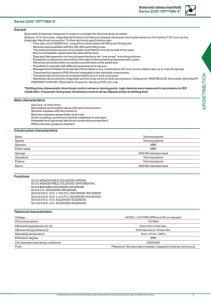

Overalldimensionsand technical informationareprovidedsolely for informativepurposesandmaybemodifiedwithoutnotice Solenoid valves manifold Series 2200 "OPTYMA-S" Air distribution 1 Series 2200 "OPTYMA-S" General Optyma32-S has been designed in order to complete the Optyma series of valves. Optyma–S,12.5mm size, integrates all the technical features already developed and implemented on the Optima T & F such as the integrated electrical connection. Further technical specifications are: - Flow rate: up to 550[Nl/min], using the modular base with Ø8 quick fitting tube. - Modular base available with Ø4, Ø6, Ø8 quick fitting tube. - The solenoid pilots are low consumption and fitted on the same side of the valve. - Mono and bistable valves have the same dimension. - Easy and fast assembly on the sub base thanks to the “one screw” mounting solution. - Possibility to replace a valve without the need of disconnecting the pneumatic pipes. - Electrical and pneumatic connections positioned on the same side. - Possibility to operate with different pressures and vacuum. - Management of 32electrical signals,(16 bi-stable or any combination off mono and bi-stable vales up to max 32 signals). - The protection grade is IP65 directly integrated in the manifold components. - The electrical connection is achieved thanks to a 37 pole connector. - Manifolds can be directly integrated with the most common field bus systems: CANopen®, PROFIBUS DP, DeviceNet, EtherNet/IP, PROFINET IO RT/IRT, EtherCAT®, Powerlink, Modbus/TCP e IO-Link “Shifting time of pneumatic directional control valves or moving parts, logic devices were measured in accordance to ISO 12238:2001, Pneumatic fluid power-Directional control valves-Measurement of shifting time” Main characteristics One size: 12.5mm thick Monostable and bistable valves with same dimensions Modular subbase with two positions Modular subbases assembled via tie rods Quick coupling connections directly integrated in sub base Integrated and optimized electrical connections as standard IP65 protection grade as standard Construction characteristics Body Technopolymer Spacer Technopolymer Spacers NBR Piston seals NBR Springs AISI 303 stainless steel Operators Technopolymer Pistons Technopolymer Spool AISI 303 stainless steel Functions SV 5/2 MONOSTABLE SOLENOID-SPRING SV 5/2 MONOSTABLE SOLENOID-DIFFERENTIAL SV 5/2 BISTABLE SOLENOID-SOLENOID SV 5/3 C.C. SOLENOID-SOLENOID SV 2x3/2 N.C.-N.C. (=5/3 O.C.) SOLENOID-SOLENOID SV 2x3/2 N.O.-N.O. (=5/3 P.C.) SOLENOID-SOLENOID SV 2x3/2 N.C.-N.O. SOLENOID-SOLENOID SV 2x3/2 N.O.-N.C. SOLENOID-SOLENOID Technical characteristics Voltage 24VDC±10% PNP (NPN and AC on request) Pilot consumption 0,5 Watt Pilot working pressure (12-14) from 2,5 to 7 bar max. Valve working pressure [1] from vacuum to 10 bar max. Operating temperature from -5°C to +50°C Protection degree IP65 Life (standard operating conditions) 50000000 Fluid Filtered air. No lubrication needed, if applied it shall be continuous
