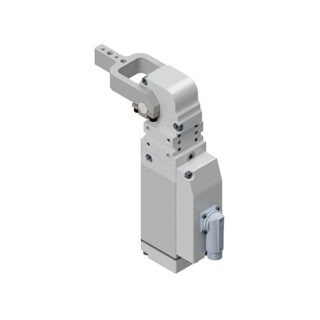

C1E25

Nano Electric power clamps Industry-proven toggle linkage

• Same functional dimensions of pneumatic clamps
• Same clamping and holding moments as pneumatic devices
• Stepless adjustable opening angle
• Optimally accessible manual unlock mechanism for emergency situations, which can also be used as manual operation
• Backlash-free trapezoidal screw with optimal compromise between cycle time and load; the irreversibility of the screw allows for an integrated auto-retain of the open position and enhances the load control
• Brushless low voltage motors with absolute encoder
• Extra-compact drive can be rotated by 180° without disassembling the clamp
• Quick installation per daisy-chain

Condition monitoring

• Obstacle detection
• Part presence; Part missing
• Multiple part detection
