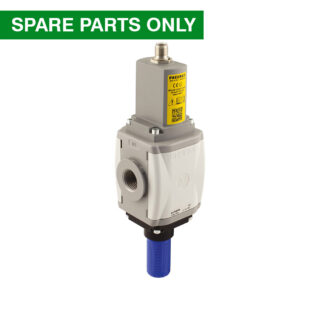

Upon implementation of the AIRPLUS TG3 series, air-treatment units, PNEUMAX develops a supply and discharge valve, with an electropneumatic control and spring-return, fitted with a diagnostic system regarding the state of the valve, with the possibility of creating a double channel to determine the system’s redundancy. The SAFELINE supply and discharge valve in the single version is a classified component in CATEGORY 1 according to EN ISO 13849 and is appropriate for use in safety circuits until PL=C.
An electropneumatic control and spring-return, fitted with a diagnostic system regarding the state of the valve – Aluminum
Attachments
INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS FOR SUPPLY AND DISCHARGE VALVE SERIES AIRPLUS SAFELINE (Single Valve)
- 227.05 KB
- Download
