sensori magnetici

The limit switches, or magnetic sensors, have to be mounted on cylinders with magnetic piston. These, when hit by the magnetic field generated by the piston as it approaches, close the circuit sending an electrical signal by relè solenoid valve control, etc. or converse with the controlling electronic system situaded on the machine.

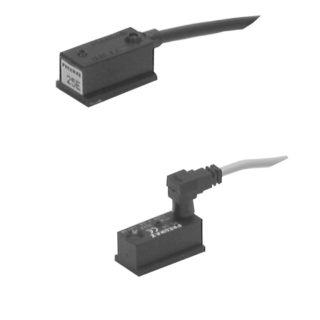

Magnetic sensors REED type with cable
Magnetic sensors REED type for connector
Magnetic sensors Hall effect with cable
Magnetic sensors Hall effect for connector
Miniaturized magnetic sensors:
Rectangular section
Oval section
Round section


Attachments

3D LIBRARY (IGES) – MAGNETICS SENSORS – FIXINGS
3D LIBRARY (STEP) – MAGNETICS SENSORS – FIXINGS
2D LIBRARY (DWG) – MAGNETICS SENSORS
2D LIBRARY (DXF) – MAGNETICS SENSORS
3D LIBRARY (IGES) – MAGNETICS SENSORS
3D LIBRARY (STEP) – MAGNETICS SENSORS
2D LIBRARY (DWG) – MAGNETICS SENSORS – FIXINGS
2D LIBRARY (DXF) – MAGNETICS SENSORS – FIXINGS
MINIATURIZED sensors datasheet
Standard sensors data sheet
