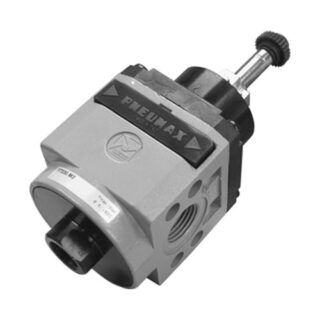

Electric shut-off valve

3/2 N.C. poppet valve for entering and exhausting the circuit
It allows to pneumatically supply the part of the system downstream of the valve
Opening and closing of the valve via solenoid operator
The supply pressure must be minimum 2 bars or higher
It is possible to produce the external supplied solenoid version by mounting the 305.10.05 between the valve main body and the solenoid pilot valve.
The air supply can only be done via port 1
Ensure that the downstream air consumption will not cause a pressure drop which could result in the pressure falling below the minimum operating values.
If the pressure inside the valve falls below 2 bars, the valve might shut off.
Atex certification (II 2GD o II 3GD) on request
