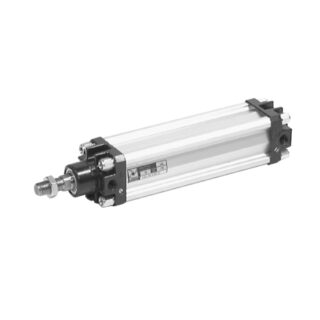

It is sometimes required that the rod of a cylinder should not turn, in orderto be able to keep the load or equipment connected to it in the requiered position.Wehave therefore designed a cylinder that fulfils this purpose through its structuralcharacteristics, namely, by using a barrel and piston with a square section.
No rotating Cylinders
