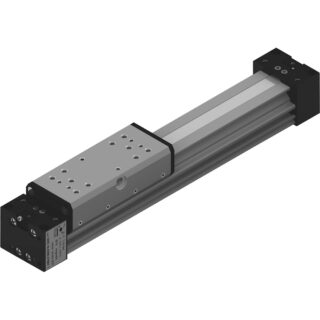

Series 1600 Ø16

Rodless cylinder based on the stainless steel strip sealing technology widely used and tested on bigger bore sizes.
Available versions: sliding shoe as standard (“MH”).
This system ensures high resistance and long life as the carriage which supports the weight is not tied to the piston and therefore the piston only transfers the movement without bearing any force.
Air connections: M5 threaded connections.
All air connections on one end cap version available. (side-back-bottom side)
Mountings:
– Foot brackets and intermediate supports if needed (depending on the stroke)
– Swivel bracket
– Directly in position via the slot on the end caps- in this conditions the air supply can come directly from the mounting plate.
Magnetic sensors: sensors series (1590…. , LRS…. and LHS….) can be used directly in the 2 slots on the barrel.
